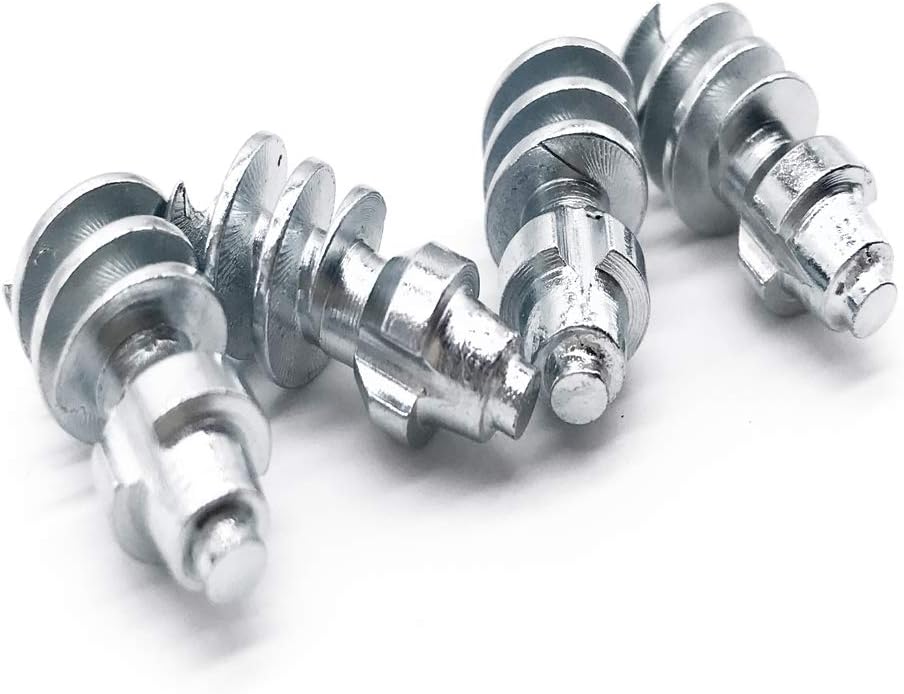

Description:
This type screw tire studs can be easily installed and removed without professional tools. When it’s not in winter, it can also be disassembled from the tire. And you can store these screw tire studs for using again in th following season.
Materials:
1. Pin of studs: 100% tungsten carbide (WC-80%+Co-10%, Hardbess :>90 HRA or >1300HV TRS Mpa:(N/MM2):1660)
2. Body of studs:carbon steel
3. Surface of studs: Galvanizing
Please pay attation:

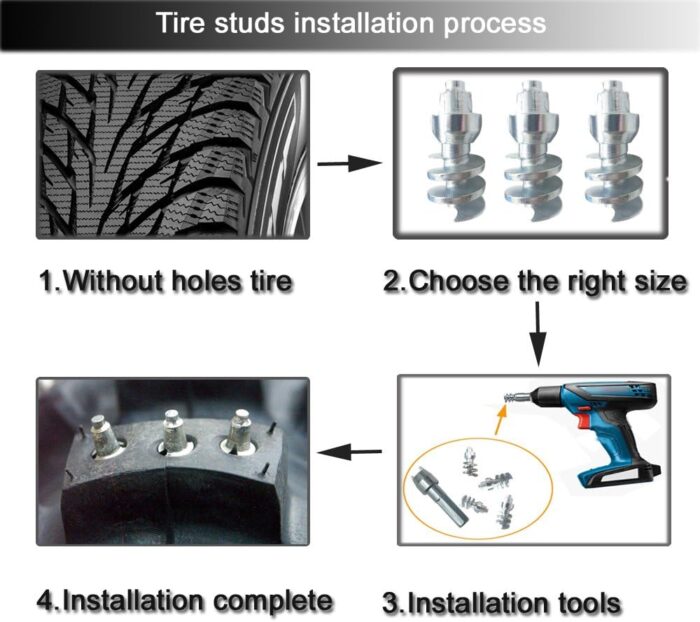

It’s important for choosing right size of studs, you must to know the depth on pattern of tread rubber to your tire. The depth must longer than 12~15mm.
Technical Info:

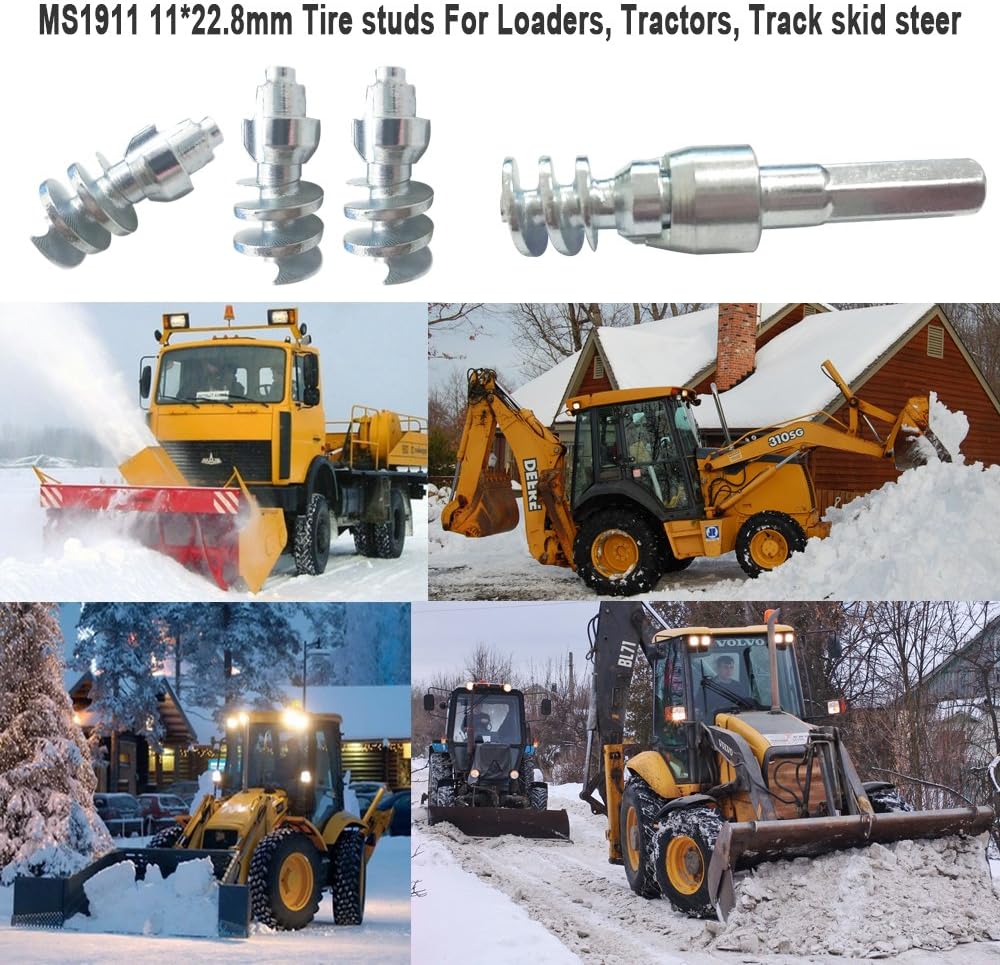

Application Loaders, Tractors, Skid Steer Tires

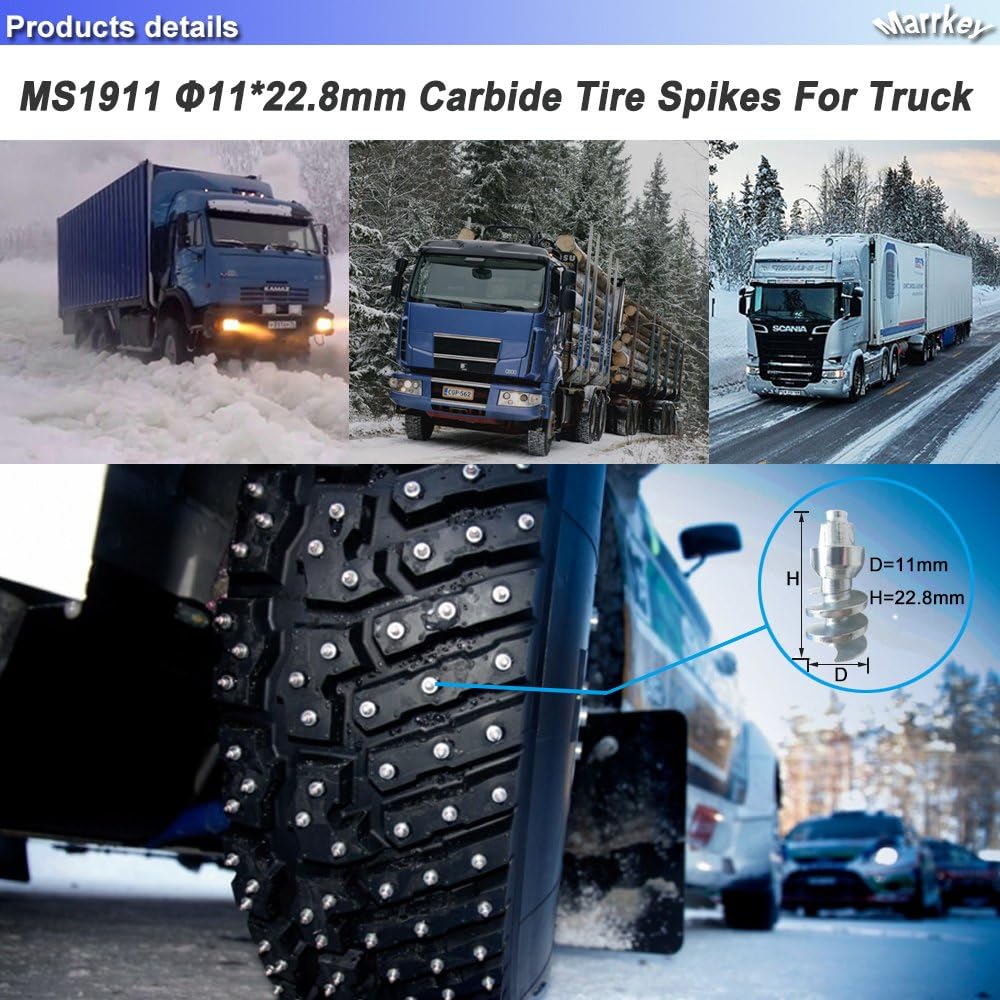

Dimensions 11 x 22.8mm
Prominence(from tire or tread surface) 5.3 mm
Stud Penetration(into tire or tread surface) 17.5mm
Minimum Tread Depth 22.8mm
Carbide Tip Width 3.5mm
Project includes:
Marrkey Tires Studs *100pcs(About)
install key*1 pcs
Designed for 180-ton heavy equipment with free installation key.
Easy to Install.
Durable one-piece Tungsten Carbide core/tip.
Wide-auger threads ensure retention.
Notched for easy installation and removal.
